SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 200A OUTPUT: at 8 kHz / 140A FRAME SIZE: BOOKSIZE INTERNAL AIR COOLING OPTIMIZED P

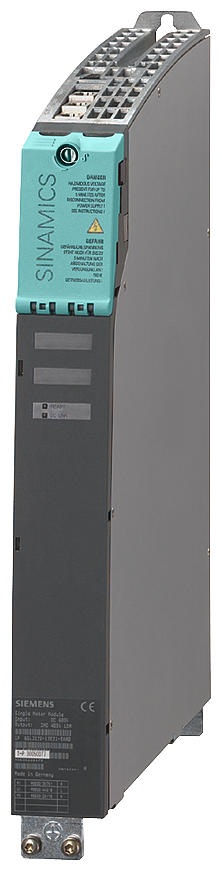

SINAMICS S120 SINGLE MOTOR MODULE INPUT: DC 600V OUTPUT: 3AC 400V, 200A OUTPUT: at 8 kHz / 140A FRAME SIZE: BOOKSIZE INTERNAL AIR COOLING OPTIMIZED PULSE SAMPLE AND SUPPORT OF THE EXTENDED SAFETY INTEGRATED FUNCTIONS INCL. DRIVE-CLIQ CABLE Motor Module SINAMICS Single Motor Module in booksize compact design for the SINAMICS S120 drive system. In standard form, the Single Motor Modules in booksize compact format have two DC link connections, one electronic power supply connection, and three DRIVE-CLiQ sockets. The module receives its control information via DRIVE-CLiQ from the CU320-2 Control Unit. The Single Motor Module covers the three-phase voltage range from 380 V up to 480 V 3AC and contains an internal air cooler as well as Safety Integrated Level 2 according to IEC 61508. For the DRIVE-CLiQ port, a dust protection sealing plug is available. A terminal adapter, a jumper bridge and a DC link adapter are additionally available for modules in booksize format. SINAMICS †the seamless drive family for every application area.
